| Touchscreen | 15 inches |
| Nutrient Channel | 4-channel independent control |
| Fertilizer Application Monitoring | 4-channel independent acquisition |
| Fertilizer injection rate | 1~15m³/h（Optional） |
| Pressure Monitoring | 3 way |
| Agitation Control | 4 way（AC220V/380V） |
| Master Valve Control | 1 way |
| Pump Control | Route 1 (Direct Connection or Variable Frequency Cabinet) |
| Liquid Level Monitoring | 1 wired channel + 256 wireless channels |
| Total Volume Monitoring | 1-way ultrasonic flowmeter connection |
| Control Mode | 7 types |
| Uplink Communication | 4G IoT SIM Card |
| Downlink Communication | LORA/RS485 |
| Number of valves | Route 256 |
| Wireless Type | Four-way/three-way valves, etc. |
| Waterproof Rating | IP55 |
| System Development | Embedded Linux |
| Remote Control | Mini Program/Web |

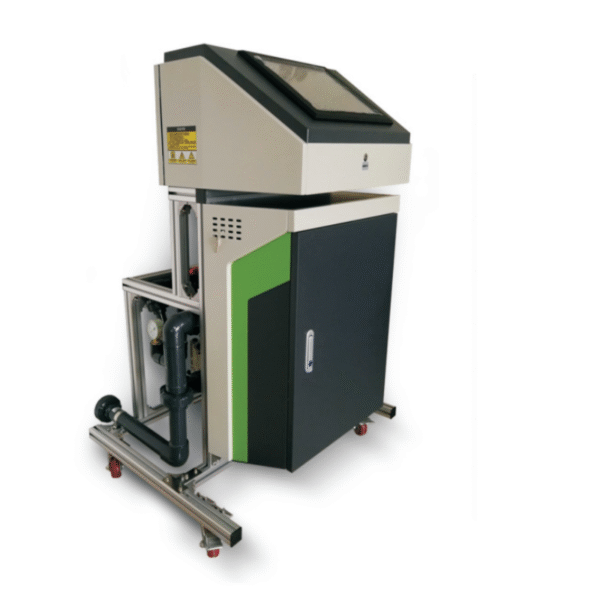

Cokver Agricultural Irrigation Water And Fertilizer Management System 2 Plus with 15-inch Touchscreen
Elevate your farm irrigation and fertilization efficiency with this advanced system, featuring a 15-inch touchscreen for intuitive operation. Built on an Embedded Linux platform, it supports 7 control modes and seamless remote management via Mini Program or Web.
Equipped with 4-channel independent nutrient control and 4-channel fertilizer application monitoring, it ensures precise nutrient distribution with an adjustable injection rate of 1–15m³/h. The system integrates 3-way pressure monitoring, 4-way AC220V/380V agitation control, 1-way master valve control, and 1-way pump control (direct or variable frequency cabinet connection).
Boasting robust connectivity, it uses 4G IoT SIM for uplink communication and LORA/RS485 for downlink, managing up to 256 valve routes (compatible with 4-way/3-way wireless valves). It also offers 1 wired + 256 wireless liquid level monitoring and 1-way ultrasonic flowmeter connection for total volume tracking. With an IP55 waterproof rating, it delivers reliable performance in harsh agricultural environments.
