| Touchscreen | 9.7 inches |
| Nutrient Channel | 4-channel independent control |
| Fertilizer Application Monitoring | 4-channel independent acquisition |
| Fertilizer injection rate | 1~15m³/h（Optional） |
| Pressure Monitoring | 3 way |
| Agitation Control | 4 way（AC220V/380V） |
| Master Valve Control | 1 way |
| Pump Control | Route 1 (Direct Connection or Variable Frequency Cabinet) |
| Liquid Level Monitoring | 1 wired channel + 256 wireless channels |
| Total Volume Monitoring | 1-way ultrasonic flowmeter connection |
| Control Mode | 7 types |
| Uplink Communication | 4G IoT SIM Card |
| Downlink Communication | LORA/RS485 |
| Number of valves | Route 256 |
| Wireless Type | Four-way/three-way valves, etc. |
| Waterproof Rating | IP55 |
| System Development | Embedded Linux |
| Remote Control | Mini Program/Web |

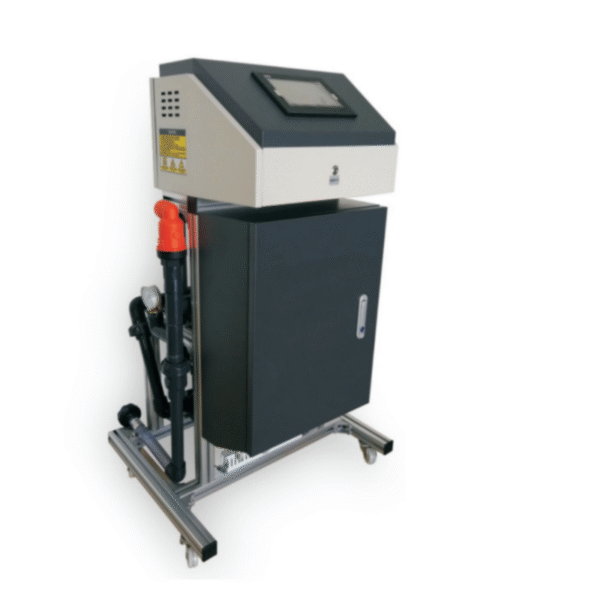

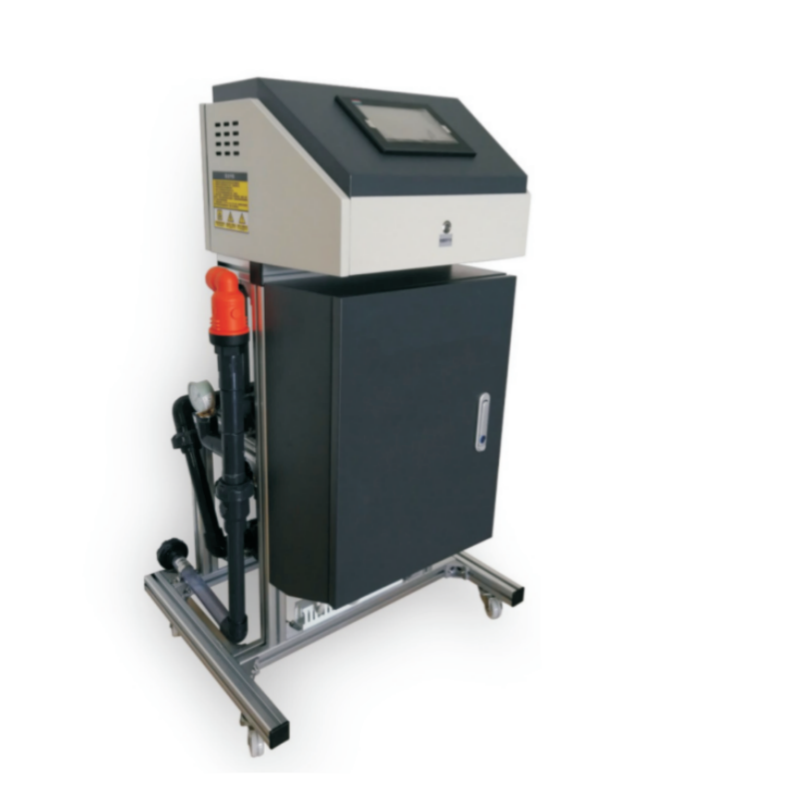

Cokver Agricultural Irrigation Water And Fertilizer Management System 2 Plus with 9.7-inch Touchscreen
This advanced integrated system streamlines agricultural water and fertilizer management with a user-friendly 9.7-inch touchscreen. It features 4-channel independent nutrient control and fertilizer application monitoring, paired with an optional 1–15m³/h fertilizer injection rate to suit diverse crop needs.
Equipped with 3-way pressure monitoring, 4-way AC220V/380V agitation control, 1-way master valve control and pump control (direct or VFD cabinet connection), it ensures precise operation. It supports 1 wired + 256 wireless liquid level monitoring and 1-way ultrasonic flowmeter connection for total volume tracking.
Boasting 7 control modes, 4G IoT uplink and LoRa/RS485 downlink communication, it manages up to 256 valve routes (4-way/3-way valves compatible). With IP55 waterproof rating, embedded Linux system and mini program/web remote control, it is a robust, intelligent solution for modern farms.
