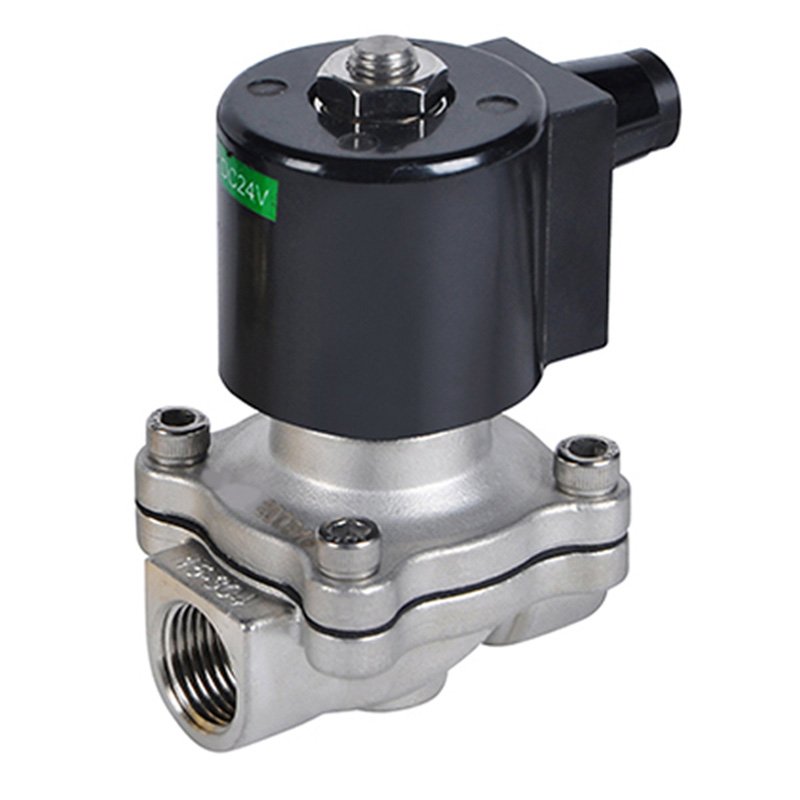

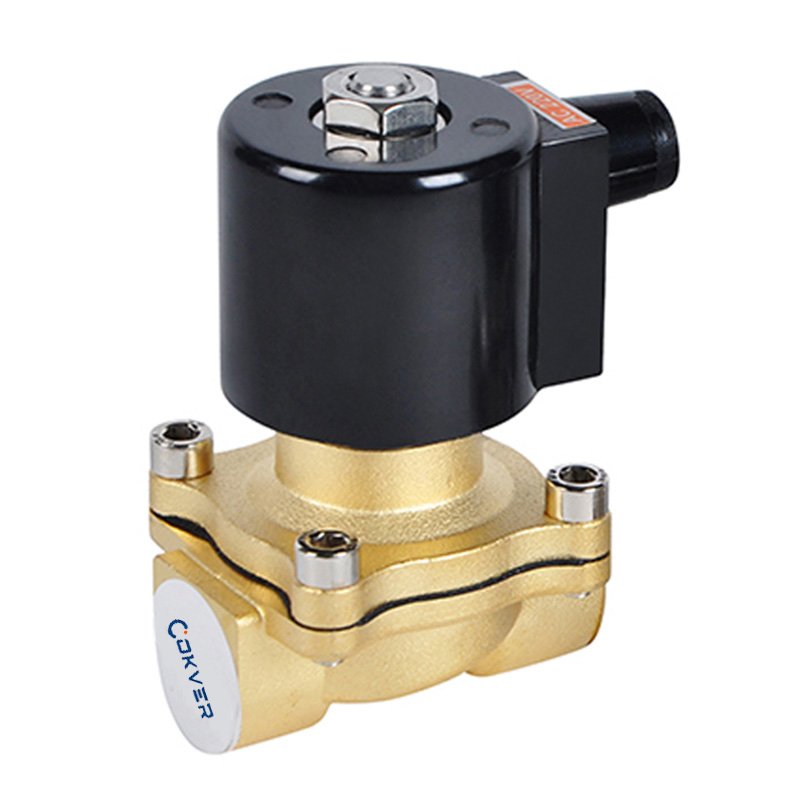

HT03 IP68 stainless steel waterproof solenoid valve, suitable for fountains.
-Product Technical Parameters-
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Port Size | 3/8″, 1/2″, 3/4″, 1″, 1¼”, 1½”, 2″ | Orifice (mm) | 10, 15, 20, 25, 32, 40, 50 |
| Port Thread | BSPP, BSPT, NPT | Function | Normally Closed (NC) |
| Pressure | 0 ~ 1.0 MPa (0 ~ 10 Bar) | Voltage | DC: 12V, 24V; AC: 24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Media Temperature | -5 ~ 80℃ (23 ~ 176℉) | Suitable Media | Water, Air, Oil, Natural Gas, etc. |
| Voltage Tolerance | ±10% | Protection Grade | IP68 |

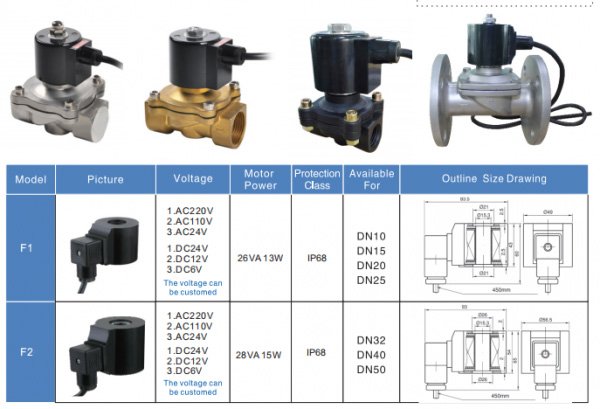

| Material | Brass | Coil | F14, 26VA (AC), 13W (DC), IP68, 100% ED; F24, 28VA (AC), 15W (DC), IP68, 100% ED |

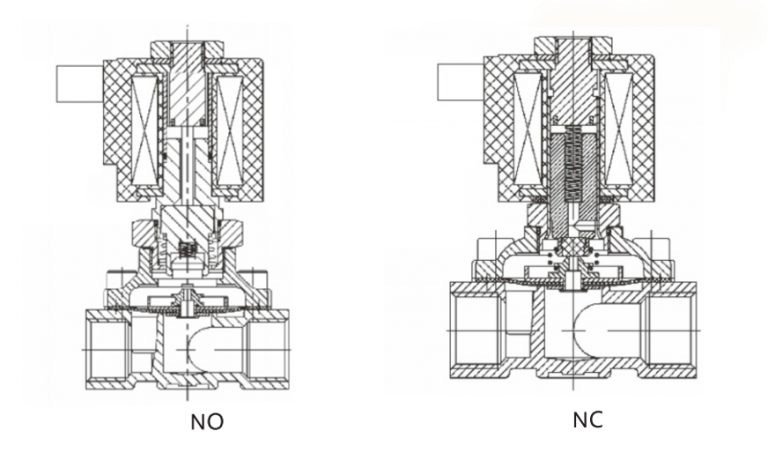

-Product Dimensions-
-Product Applications & Functions-

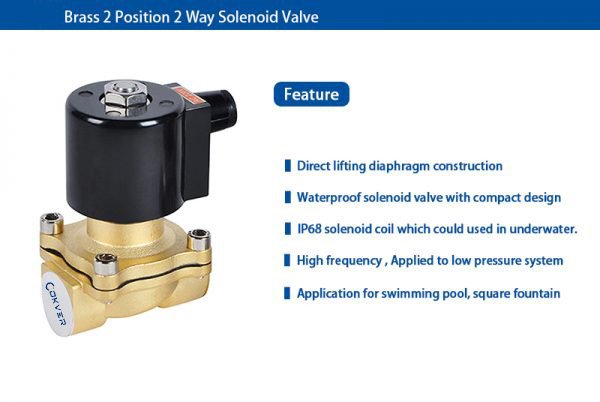

HT03 Normally Closed Brass and Stainless Steel Waterproof Solenoid Valve, equipped with an IP68-rated durable waterproof solenoid coil, suitable for underwater use. Zero-voltage start-up. Selectable voltages: 12V DC, 24V DC, 110V AC, 220V AC.
COKVER is committed to providing customers with the highest-quality products and the most competitive prices, Timely delivery and comprehensive warranty services, providing full-range support from start to finish, including consultation and after-sales service, offering complete assistance in all aspects, and ensuring that you are accompanied at every stage of your project.
