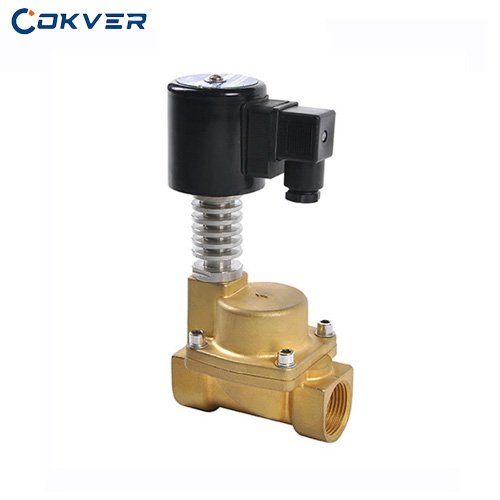

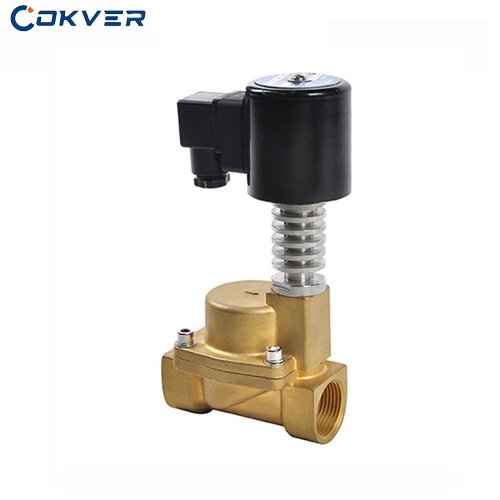

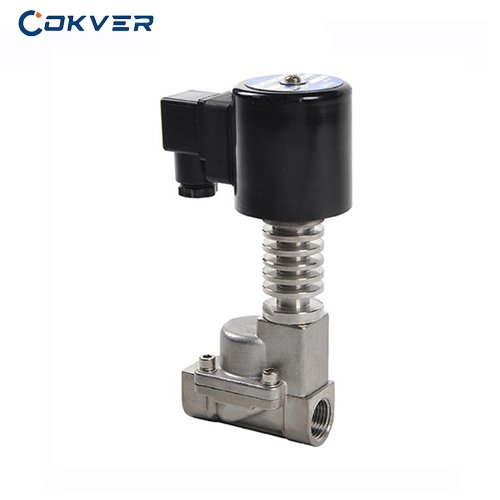

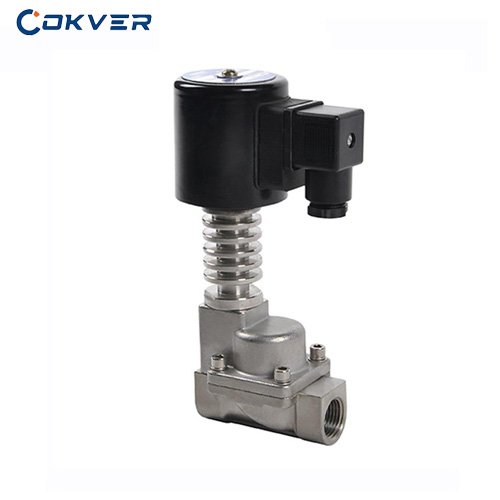

COKVER HT10 Series Stainless Steel High-Temperature Solenoid Valve

COKVER HT10 High-Temperature Solenoid Valve, brass or stainless steel body, two-way, 24V DC, 24V DC, 2-way, minimum 1/4 inch internal thread connection, normally closed. It defaults to a PTFE valve seat, which is resistant to almost all fluids. Suitable for higher working pressures and temperatures.

Model: HT10
Size range: 1/4 inch to 2 inches
Pressure range: 0.05 to 1.6 MPa
Materials: Brass, stainless steel

COKVER Stainless Steel High-Temperature Heat Transfer Oil Solenoid Valve
● Features: high-temperature resistance, rapid response, long-term operation, etc.
● Structure: Pilot-operated piston
● Function: Normally Closed
● Material: stainless steel or brass
● Pressure: 0.5 to 16 bar
● Temperature: High temperature range (-10°C to 350°C)
● Connection methods: threaded, flanged
● Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
● Tolerance: ±10%
● Applicable media: hot water, heat transfer oil, steam, etc.

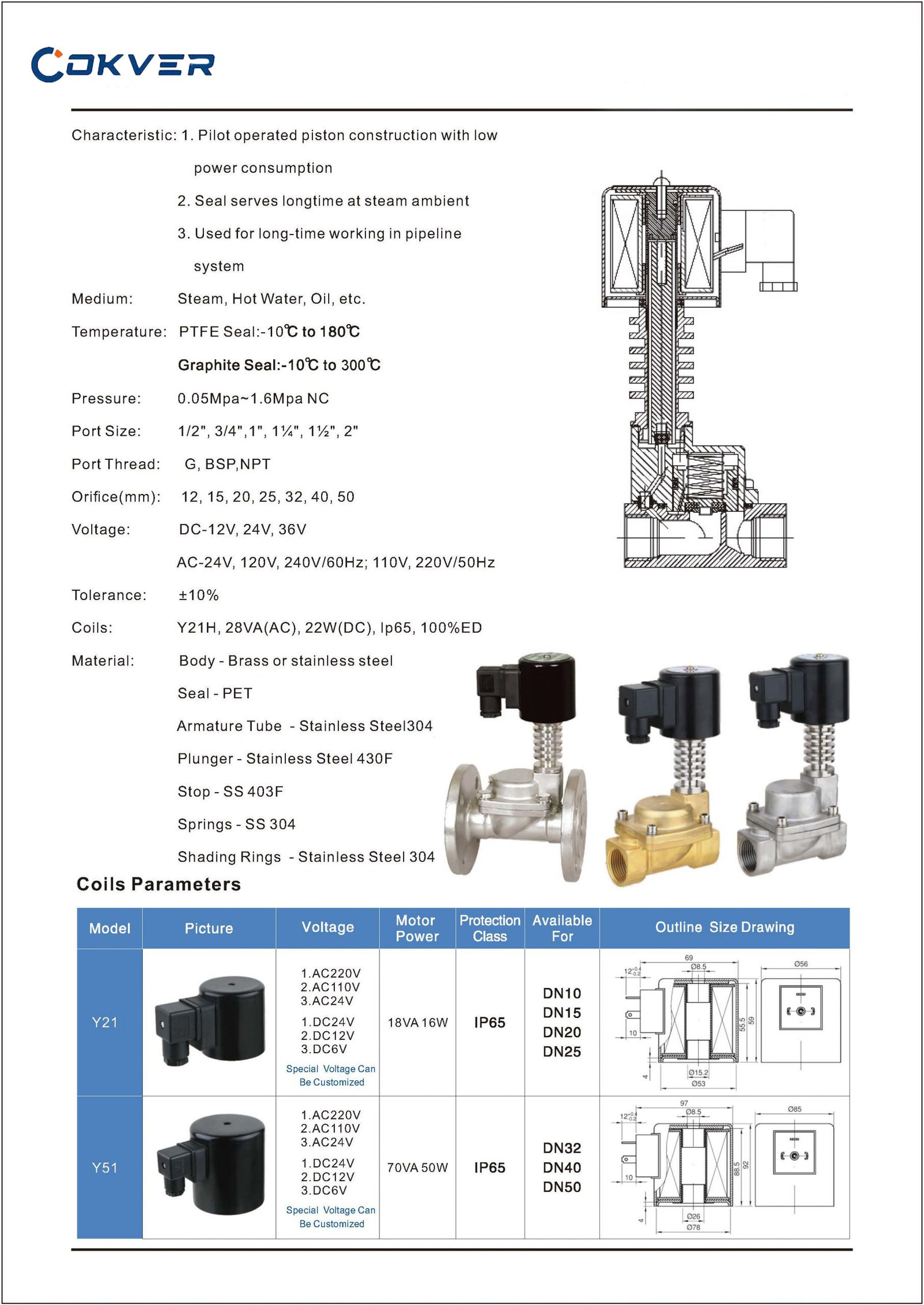

– Data Table –

Parameter	Specification	Parameter	Specification
Model	HT10	Function	Normally Closed (NC)
Port Thread	BSPP, BSPT, NPT, Flange	Certifications	ISO 9001, CE, TUV, SGS
Port Size	1/4″ ~ 2″	End Connection	Female Thread
Working Pressure	0.05 ~ 1.6 MPa	Media	Water, Oil, Air, Gas, etc.
Body Material	Stainless Steel, Brass	Working Temperature	-10℃ ~ 300℃
Seal Material	PTFE (Polytetrafluoroethylene)	Warranty	1 Year (12 Months)

– Description –
HT10 stainless steel high-temperature solenoid valve, suitable for media such as heat transfer oil, hot water, and steam. Sealing components can be used for a long time in steam environments. Suitable for long-term operation of piping systems.Maximum temperature: 300°C (572°F).
