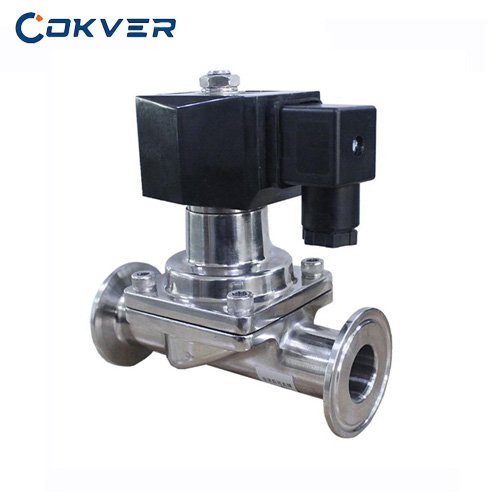

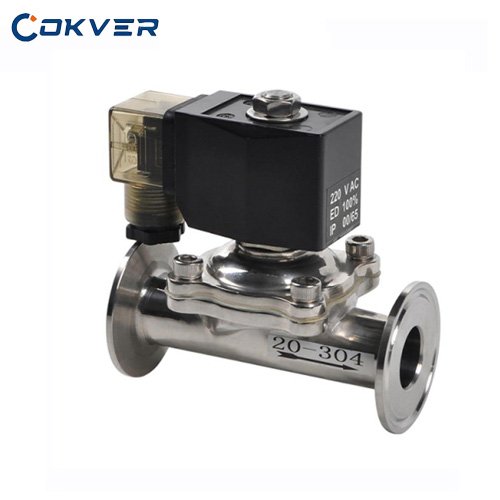

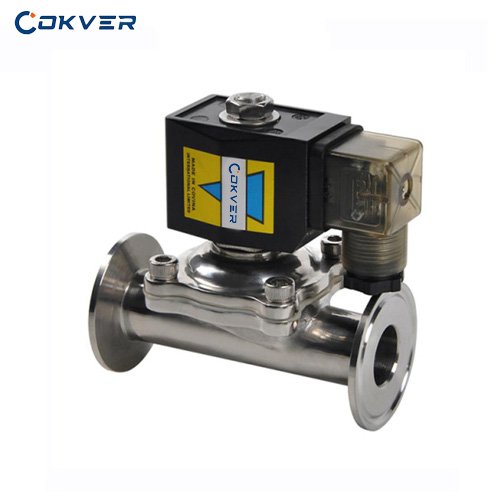

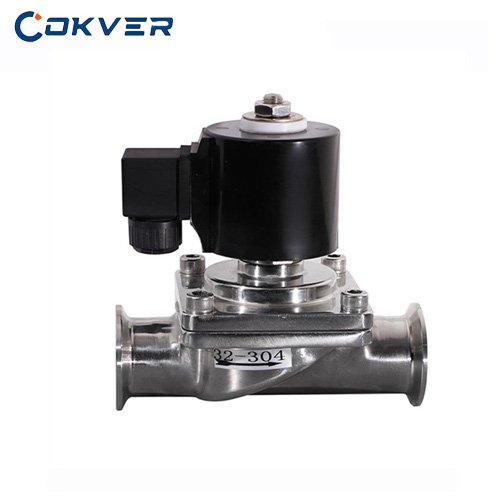

Cokver HT0020 Series Triple Clamp Food-Grade Sanitary Solenoid Valve

Cokver HT0020 solenoid valve, stainless steel body construction, 2/2 way, 24VDC, minimum 3/8 inch tri-clamp connection, normally closed operation. Default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM or PTFE seat is optional.

Model: HT0020
Size Range: 3/8″ to 2″
Pressure Range: 0 to 1.6MPa
Material: Stainless Steel

Cokver Triple Clamp Food-Grade Sanitary Solenoid Valve
● Features: Compact structure;Unidirectional flow;The ambient temperature can reach up to 80°C (-5°C to 80°C).
● Function: Normally Closed/Normally Open
● Contact medium materials compliant with FDA standards, capable of withstanding corrosive cleaning solutions.
Two-way flow
● Pressure: 0 to 10 bar
● Ultra-high reliability – 50 million switching cycles
● Connection Type: Triple Clamp
● Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
● Tolerance: ±10%
● Applicable media: milk, soft drinks, water, etc.

– DATA SHEET –
Model HT0020B Switch Function NC / NO
MOQ 1 Set
Certification ISO 9001, CE, TUV, SGS
Port Size 3/8″ to 2″ End Connection Tri Clamp
Operating Pressure 0 to 1.6MPa Media Water, Oil, Air, Gas etc.
Body Material: SS304/ SS316 Working Temperature -10~80℃
Sealing Material NBR / PTFE / EPDM Warranty 1 Year (12 Months)

– DESCRIPTION –
Cokver HT0020 Tri Clamp Food Grade Solenoid Valve adopts quick connection approach, to avoid direct contact with the media, can keep food media hygienic and safety. Widely used for food industry.

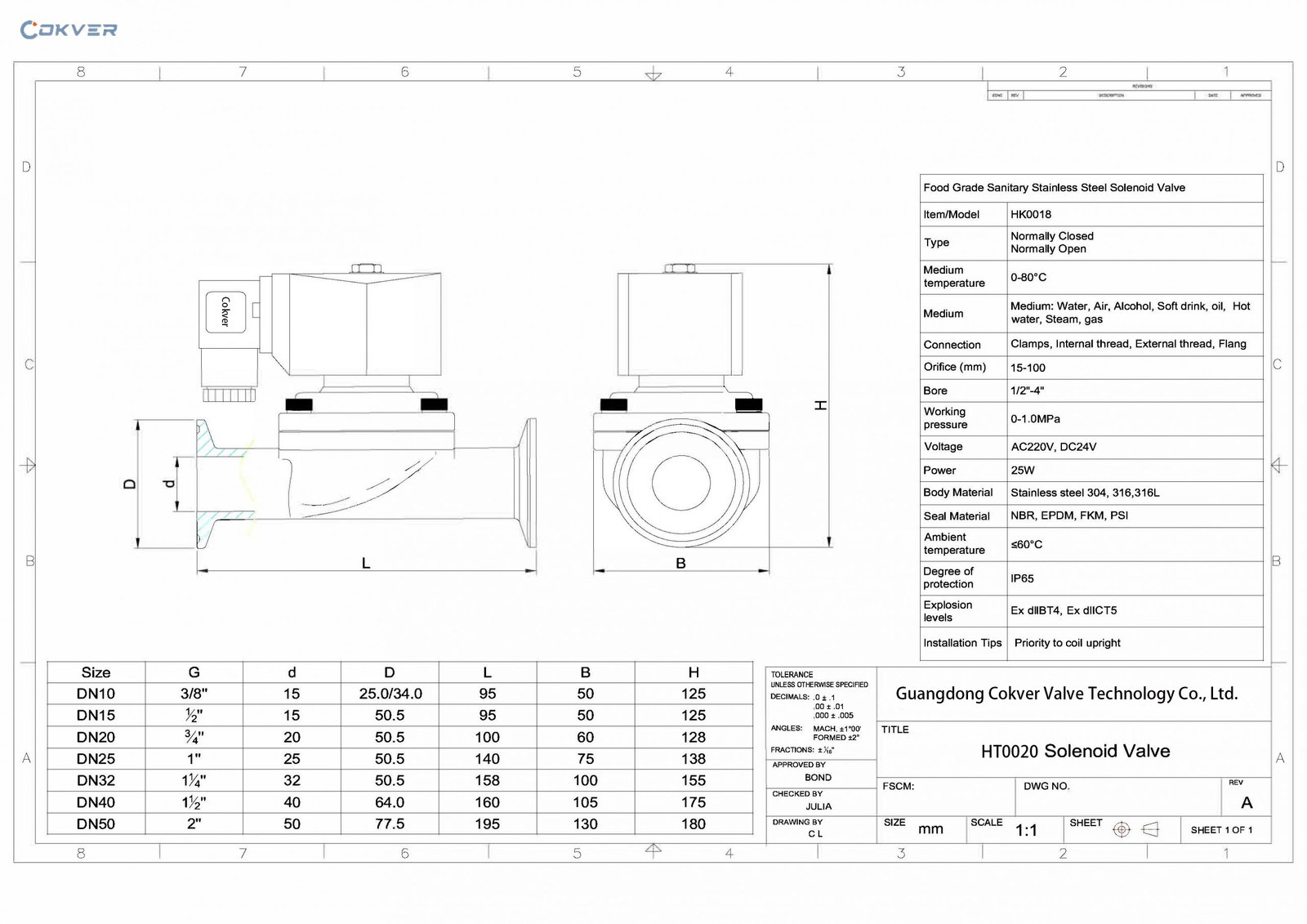

COVNA food grade water solenoid valve catalog is provided, click download button above to gain the dimension of sanitary solenoid valve.
