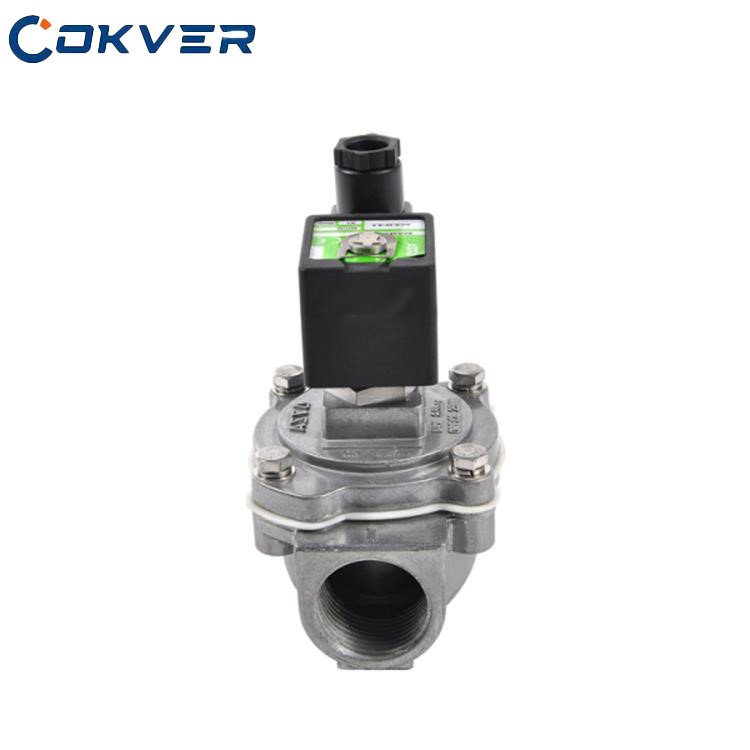

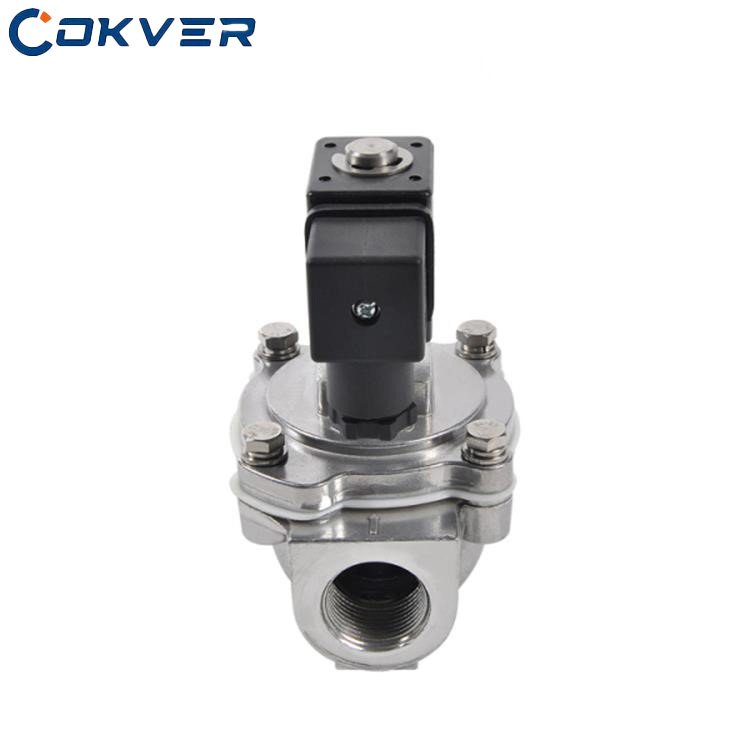

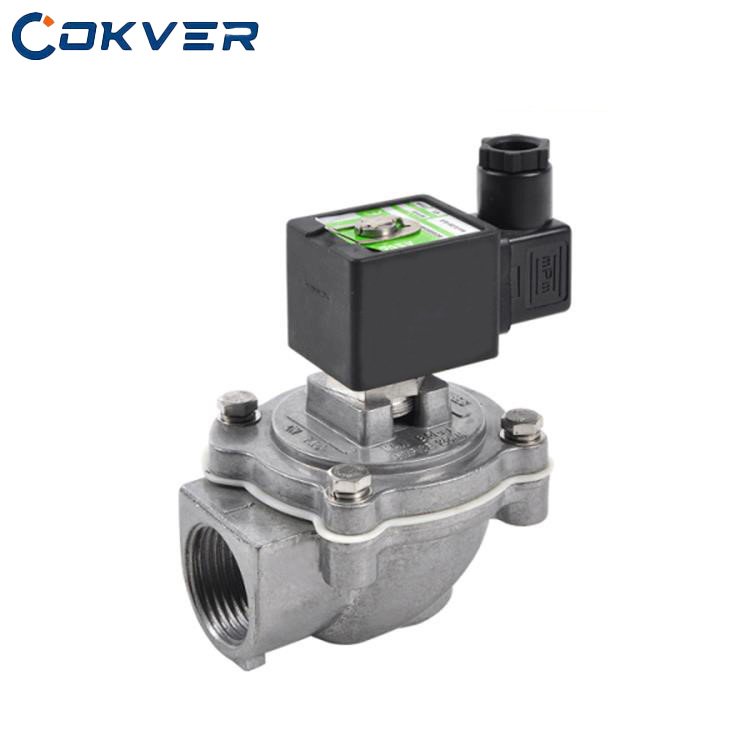

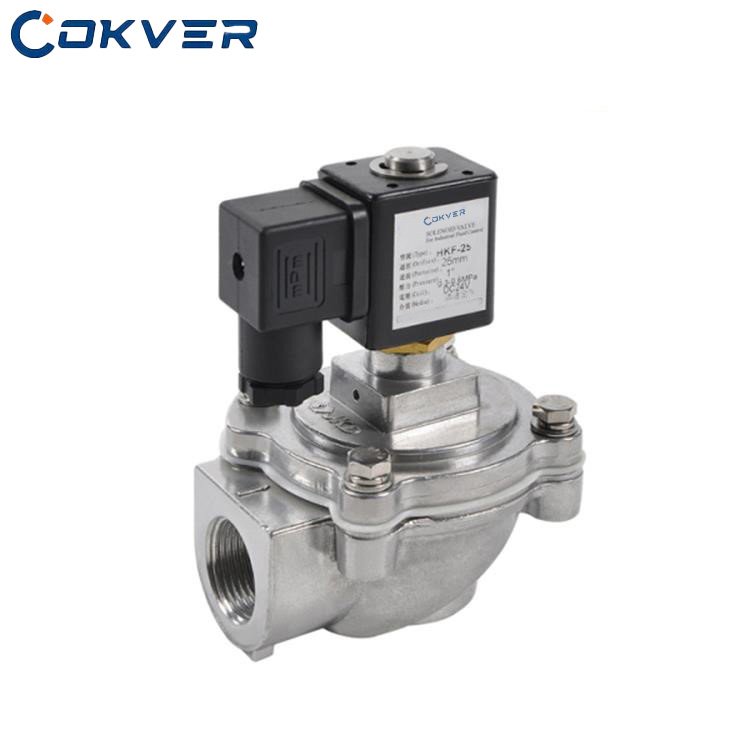

COKVER Explosion-Proof Electromagnetic Pulse Valve
An electromagnetic pulse valve refers to a diaphragm valve controlled by an solenoid valve or a pneumatic pilot valve, which can instantly open and close a high-pressure gas source to generate a pulse signal. The pulse valve is the main component of a bag-type dust collector, with the number of injection cycles reaching over one million times. A pulse valve is a type of valve that utilizes the delay effect of gas flow resistance and gas volume to convert an input long-duration signal into a pulsed signal.
– Data Table –
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Port Size | 3/4″ ~ 3″ | Orifice (mm) | 20, 25, 40, 62 |
| Port Connection | BSPP, BSPT, NPT | Function | Normally Closed or Normally Open (NC/NO) |
| Pressure | 0.4 ~ 0.6 MPa | Voltage | 12VAC, 24VAC, 36VAC, 48VAC, 110VAC, 220VAC, 380V, DC24V, AC220V |
| Media Temperature | FKM (VITON) seal: -5 ~ 120℃; PTFE seal: -10 ~ 180℃ | Suitable Media | LNG, LPG, Neutral Gas or Liquid, Air, Water |
| Material | Stainless Steel or Brass | Seal Material | EPDM, VITON (FKM), NBR, PTFE |
