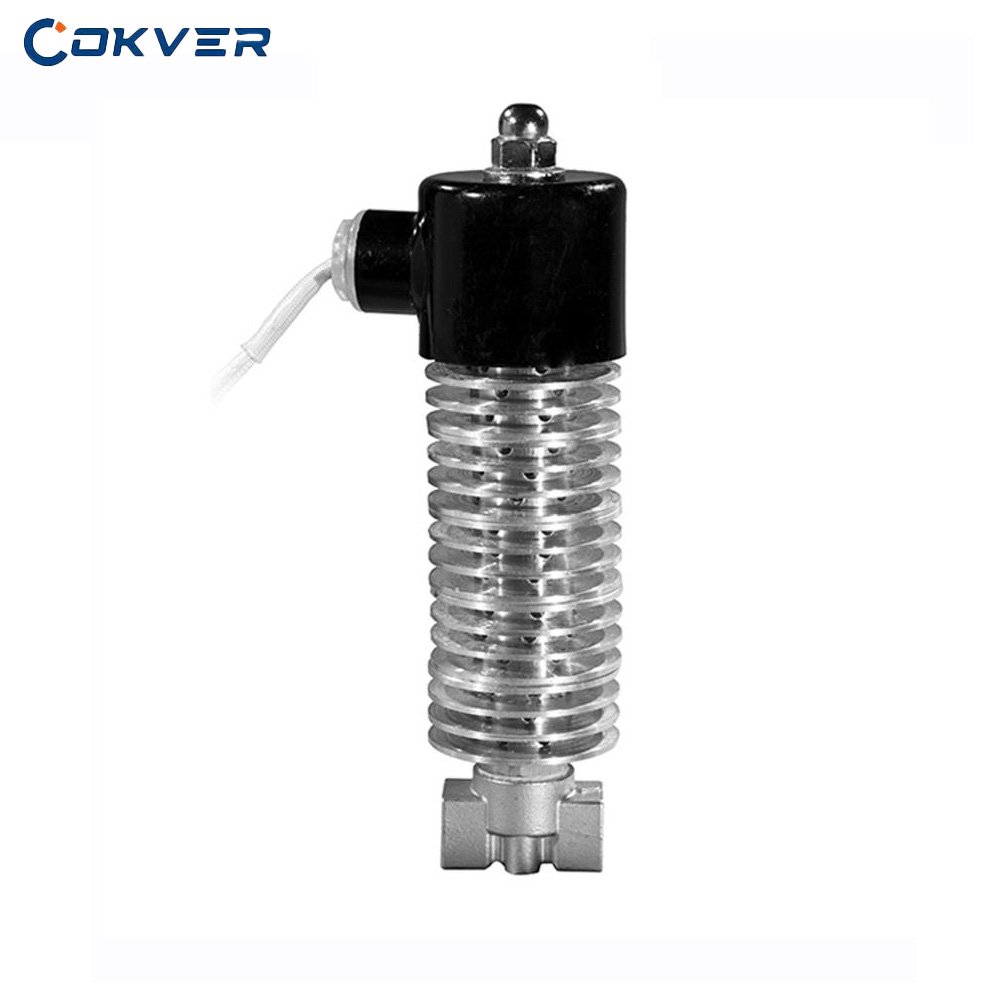

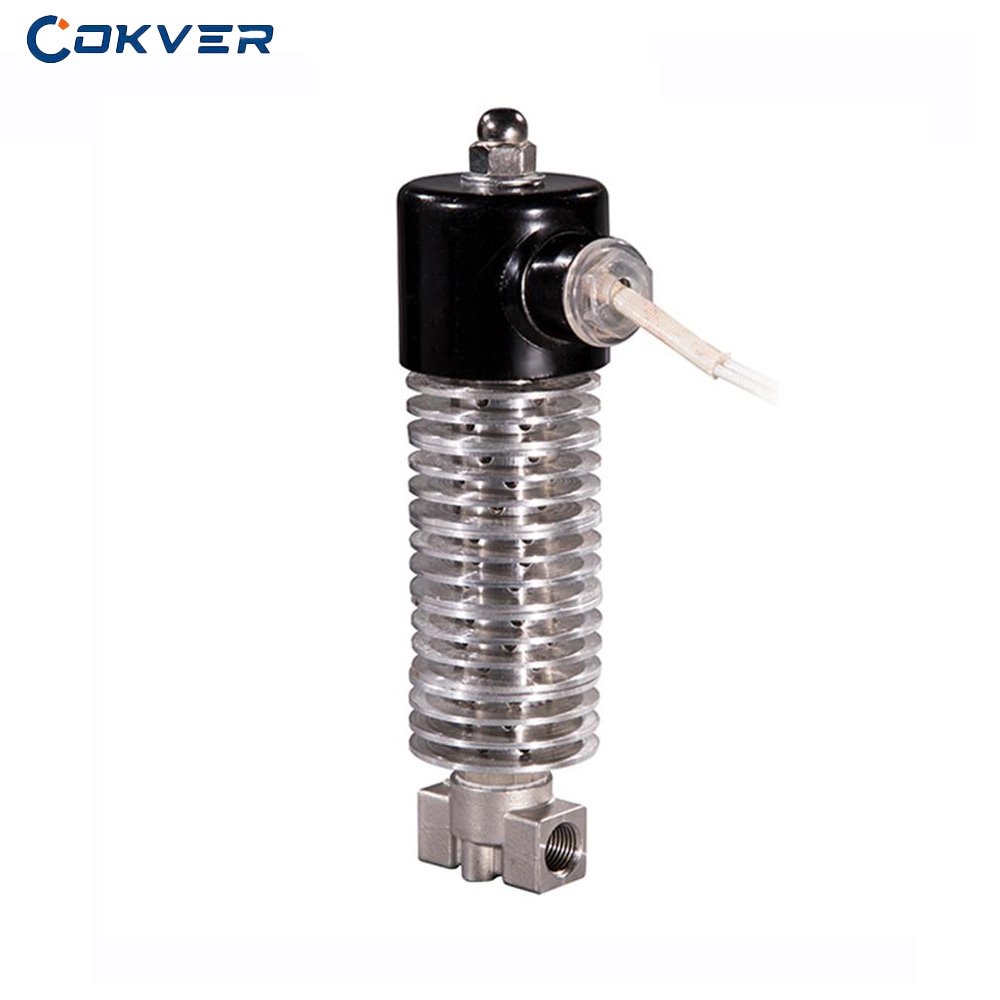

Cokver HT21 Ultra-High Temperature Solenoid Valve

Cokver HT21 Direct-Acting Solenoid Valve is a high-temperature-resistant, normally closed (opens when energized) or normally open (closes when energized) piston-type solenoid valve. The valve body is made of 304 stainless steel, and the valve seat is made of reinforced polytetrafluoroethylene (PTFE).

It is primarily used for high-temperature applications, capable of withstanding saturated steam temperatures up to 200°C and other media temperatures up to 250°C, such as hot oil.It can handle fluids with viscosities as high as 50 centipoise. Typical applications include steam, laundry equipment, hot oil, steam curing beds, boilers, and general industrial sectors.

Model: HT21
Size range: 1/8 inch to 3/8 inch
Pressure range: 0 to 1.6 MPa
Material: Stainless steel

ASK FOR QUOTE

Cokver high-temperature solenoid valve, suitable for oil, steam, and boiling water.
● Zero-start pressure (suitable for low-pressure systems, can be activated at 0 bar)
● Low-power direct-acting miniaturized structure
● Multiple voltage options: DC 12 volts, 24 volts;AC 24V, 110V, 220V
● Suitable for relatively small traffic volumes
– Compact design, space-saving
– Service life of up to 80,000 cycles
● Zero leakage
● Control mode: Normally Closed/Normally Open
● Material: Brass or stainless steel
● Ambient temperature and fluid temperature: 0°C to 80°C
● Tolerance: ±10%
● Applicable media: high-temperature fluids, air, water, oil, liquids, etc.

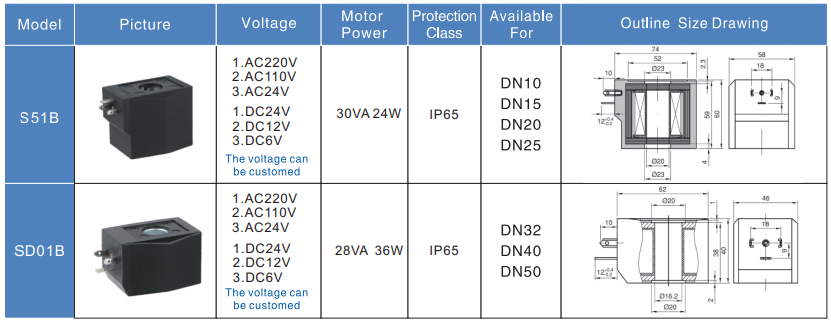

-Coil parameters-
