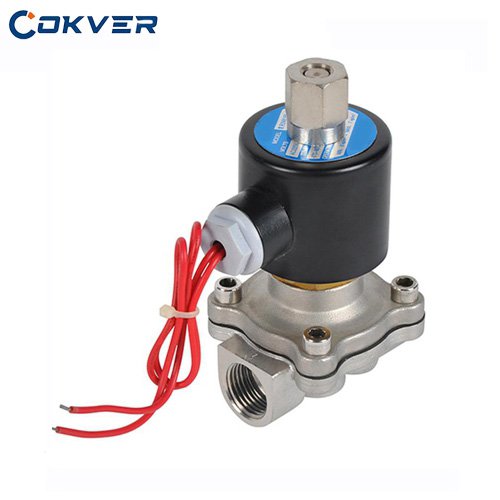

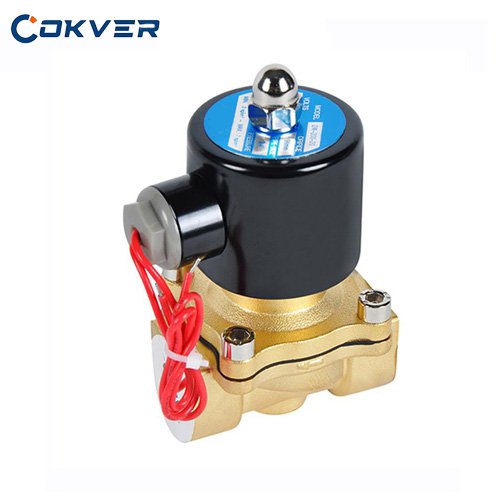

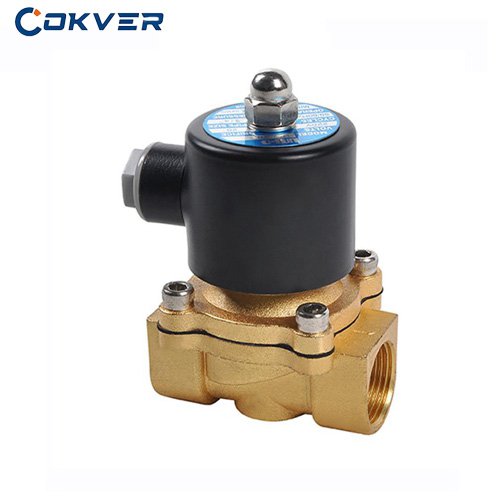

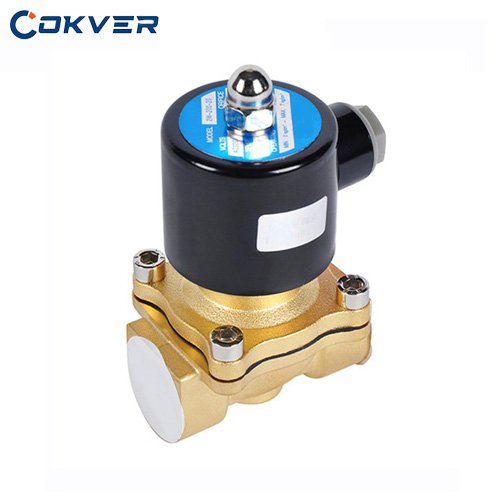

Cokver 2W Vertical Diaphragm Solenoid Valve

Cokver 2W vertical diaphragm solenoid valve, with brass and stainless steel valve body construction, two-way,
standard 220V AC voltage, minimum 1/2-inch internal thread connection, normally closed or normally open operation.
Default NBR valve seat, suitable for most air, water, light oils, fuels, solvents, alcohols,
and various acids; Optional EPDM or VITON valve seats are available.

Model: 2W
Size range: 1/4 inch to 4 inches
Pressure range: 0 to 1.0 MPa
Materials: Brass, stainless steel

Cokver 2W Vertical Diaphragm Solenoid Valve
● High-frequency direct enhancement of diaphragm structure.

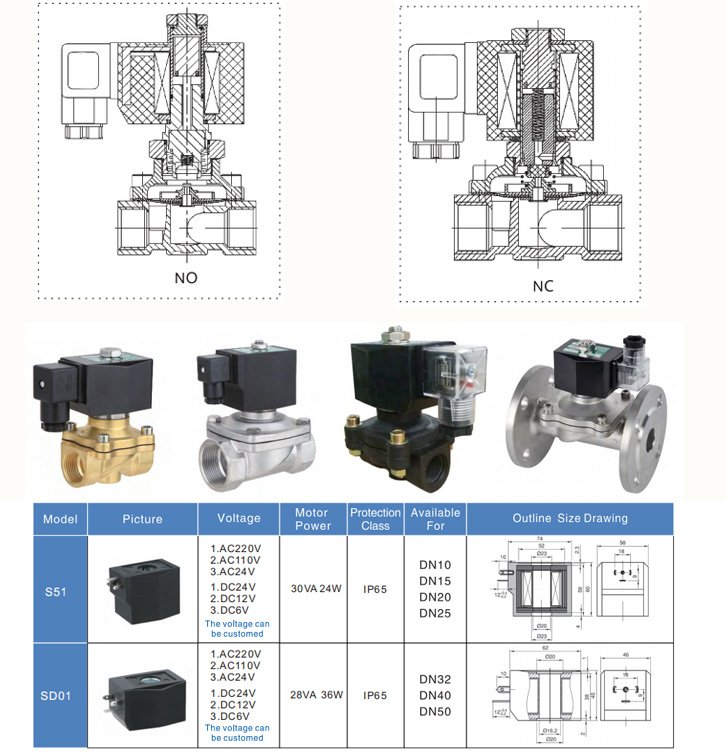

● Structure: Direct-acting diaphragm/Guided diaphragm

● Features: zero leakage, rapid onset of action, etc.

● Starting from 0 bar, high flow rate activation (zero-pressure start-up)

● Function: Normally Closed/Normally Open

● Suitable for low-voltage systems.

● Temperature: Room temperature (-10°C to 80°C), moderate temperature (-10°C to 120°C)

● Suitable for water, air, gases, etc.

– Description –

A bidirectional diaphragm solenoid valve refers to a valve with two fluid inlet and outlet channels. A direct-acting solenoid valve can block fluid flow in either direction, but its design still allows full flow in one direction only. A semi-direct-acting solenoid valve requires fluid flow assistance to open. These bi-directional solenoid valves can be used at an operating pressure of 0 psi.
